HITSZ Meal Recognition
Introduction
HITSZMealRecognition is a MATLAB program that recognizes meal and calculates its price automatically using YOLO neural network.
|- bin
|- mealRecognition.m
|- mealTestDatasetRecognition.m
|- mealTrainingDatasetRecognition.m
|- data
|- HITSZMealDataset400x300
|- *.jpg, 242
|- *.xml, 242
|- HITSZMealGroundTruth.mat
|- HITSZMealLabel.mat
|- saveGroundTruth.m
|- figures
|- labelProcess1.png
|- labelProcess2.png
|- r1.png
|- r2.png
|- r3.png
|- r4.png
|- r5.png
|- temp
|- README.md
|- utils
|- augmentData.m
|- imResize.m
|- preprocessData.m
|- xmlRead.m
|- README.md
Label Definition
Variable | Description |
---|---|
rice | 米饭 |
jrtd | 鸡肉土豆 |
dg | 豆干 |
ymc | 油麦菜 |
cjd | 炒鸡蛋 |
nrm | 牛肉面 |
sqz | 烧茄子 |
jt | 鸡腿 |
cqj | 炒青椒 |
df | 豆腐 |
jdxhs | 鸡蛋西红柿 |
st | 蒜苔 |
bc | 菠菜 |
wz | 丸子 |
j2 | 鸡2 |
gdf | 干豆腐 |
yr | 鸭肉 |
cm | 炒面 |
j1 | 鸡1 |
csp | 炒笋片 |
cch | 炒菜花 |
r2 | 肉2 |
r1 | 肉1 |
cyc | 炒油菜 |
tdnr | 土豆牛肉 |
xmz | 小米粥 |
jdhg | 鸡蛋黄瓜 |
krbf | 烤肉拌饭 |
szrp | 水煮肉片 |
r3 | 肉3 |
cst | 炒笋条 |
cct | 炒菜头 |
czch | 炒紫菜花 |
r4 | 肉4 |
jdg | 鸡蛋糕 |
r5 | 肉5 |
mlt | 麻辣烫 |
jdjc | 鸡蛋韭菜 |
cdfp | 炒豆腐片 |
csh | 炒蒜毫 |
r6 | 肉6 |
j3 | 鸡3 |
jcdp | 韭菜豆片 |
bcnf | 白菜闹粉 |
gbjd | 宫保鸡丁 |
cmg | 炒蘑菇 |
lm | 拉面 |
jp | 鸡排 |
jt2 | 鸡腿2 |
yt | 鸭腿 |
hd | 海带 |
yd | 鱼段 |
How to Label Images

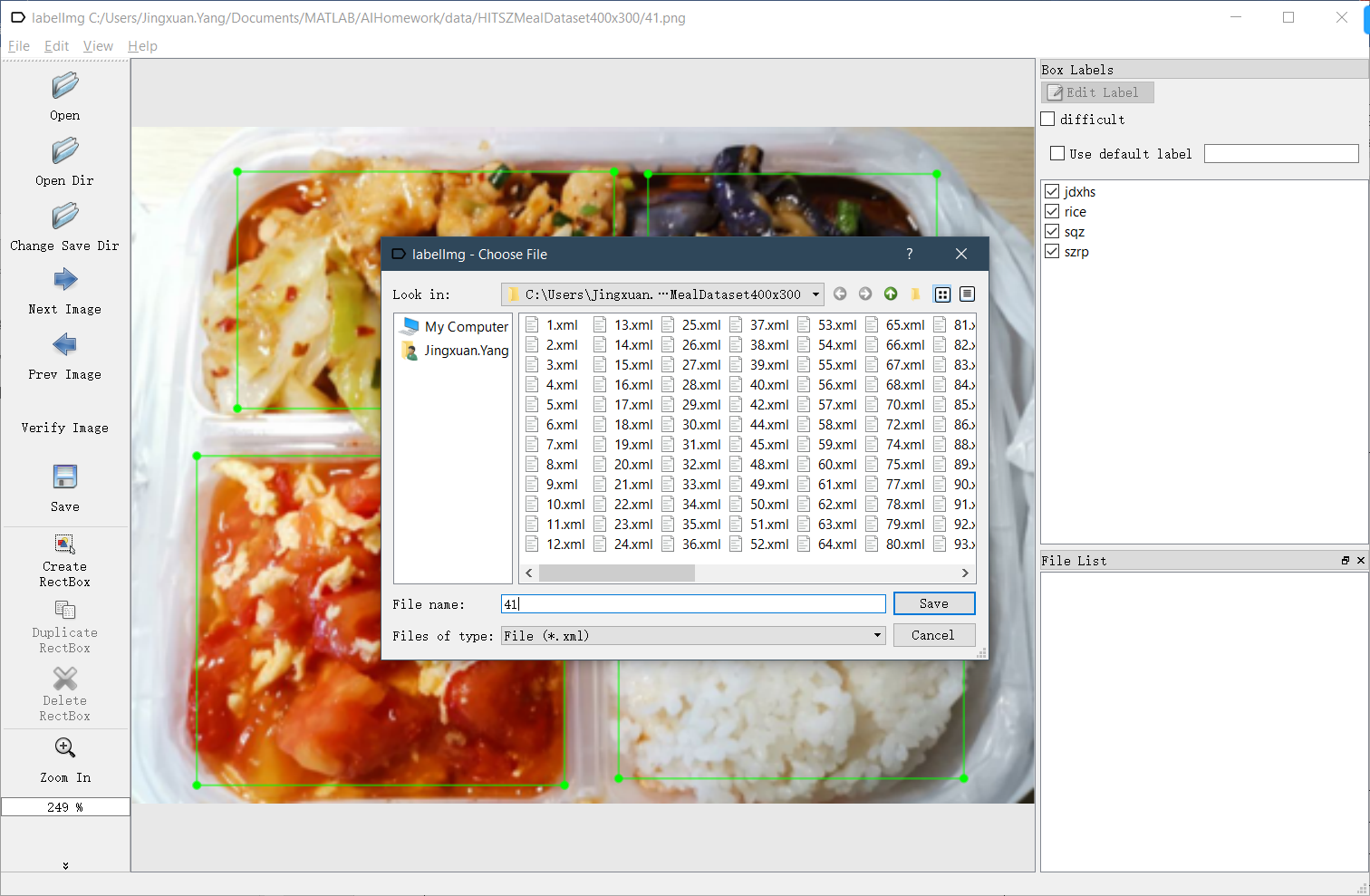

Use labelImg software to label images.
Step 1: Label each dish
Step 2: Save xml file
How to Start Training Process
- install
Deep Learning Toolbox Model for ResNet-50 Network
toolbox and use MATLAB version 2020a or later - add this folder and all its subfolders to matlab searching path
- run
data/HITSZMealDataset400x300/saveGroundTruth.m
to get ground truth file of the dataset - run
bin/mealRecognition.m
to train network and verify results - with trained data, you can run
bin/mealTestDatasetRecognition.m
to verify test dataset andbin/mealTrainingDatasetRecognition.m
to verify training dataset, respectively
Example
An example training process is shown below, which costs nearly 2 hours.
*************************************************************************
Training a YOLO v2 Object Detector for the following object classes:
* rice
* jrtd
* dg
* ymc
* cjd
* nrm
* gbr
* sqz
* jt
* cqj
* df
* jdxhs
* st
* jd
* bc
* wz
* yc
* j2
* gdf
* yr
* cm
* j1
* csp
* cch
* r2
* r1
* cyc
* tdnr
* xmz
* jdhg
* krbf
* szrp
* r3
* cst
* cct
* czch
* r4
* jdg
* r5
* mlt
* jdjc
* cdfp
* csh
* r6
* j3
* jcdp
* bcnf
* gbjd
* cmg
* lm
* jp
* jt2
* yt
* hd
* yd
Training on single GPU.
Initializing input data normalization.
|======================================================================================================================|
| Epoch | Iteration | Time Elapsed | Mini-batch | Validation | Mini-batch | Validation | Base Learning |
| | | (hh:mm:ss) | RMSE | RMSE | Loss | Loss | Rate |
|======================================================================================================================|
| 1 | 1 | 00:00:12 | 6.04 | 2.89 | 36.4648 | 8.3261 | 0.0010 |
| 5 | 50 | 00:02:08 | 1.70 | 1.68 | 2.9017 | 2.8259 | 0.0010 |
| 10 | 100 | 00:04:14 | 1.30 | 1.56 | 1.7015 | 2.4322 | 0.0010 |
| 15 | 150 | 00:06:19 | 1.19 | 1.60 | 1.4222 | 2.5474 | 0.0010 |
| 20 | 200 | 00:08:24 | 1.11 | 1.63 | 1.2372 | 2.6486 | 0.0010 |
| 25 | 250 | 00:10:28 | 1.09 | 1.63 | 1.1945 | 2.6467 | 0.0010 |
| 30 | 300 | 00:12:32 | 1.07 | 1.63 | 1.1550 | 2.6604 | 0.0010 |
| 35 | 350 | 00:14:37 | 0.95 | 1.65 | 0.9035 | 2.7259 | 0.0010 |
| 40 | 400 | 00:16:41 | 0.96 | 1.67 | 0.9282 | 2.7757 | 0.0010 |
| 45 | 450 | 00:18:46 | 1.02 | 1.61 | 1.0330 | 2.6045 | 0.0010 |
| 50 | 500 | 00:20:48 | 0.91 | 1.56 | 0.8285 | 2.4478 | 0.0010 |
| 55 | 550 | 00:22:45 | 0.91 | 1.66 | 0.8258 | 2.7571 | 0.0010 |
| 60 | 600 | 00:24:41 | 0.90 | 1.74 | 0.8162 | 3.0429 | 0.0010 |
| 65 | 650 | 00:26:38 | 0.98 | 1.66 | 0.9628 | 2.7391 | 0.0010 |
| 70 | 700 | 00:28:35 | 0.92 | 1.70 | 0.8434 | 2.8811 | 0.0010 |
| 75 | 750 | 00:30:32 | 0.89 | 1.64 | 0.7837 | 2.6788 | 0.0010 |
| 80 | 800 | 00:32:29 | 0.85 | 1.73 | 0.7217 | 3.0060 | 0.0010 |
| 85 | 850 | 00:34:26 | 0.80 | 1.71 | 0.6447 | 2.9223 | 0.0010 |
| 90 | 900 | 00:36:23 | 0.79 | 1.81 | 0.6216 | 3.2707 | 0.0010 |
| 95 | 950 | 00:38:19 | 0.79 | 1.66 | 0.6245 | 2.7580 | 0.0010 |
| 100 | 1000 | 00:40:16 | 0.80 | 1.71 | 0.6352 | 2.9196 | 0.0010 |
| 105 | 1050 | 00:42:12 | 0.77 | 1.71 | 0.5860 | 2.9217 | 0.0010 |
| 110 | 1100 | 00:44:09 | 0.75 | 1.77 | 0.5618 | 3.1404 | 0.0010 |
| 115 | 1150 | 00:46:06 | 0.75 | 1.79 | 0.5622 | 3.2177 | 0.0010 |
| 120 | 1200 | 00:48:03 | 0.75 | 1.93 | 0.5571 | 3.7390 | 0.0010 |
| 125 | 1250 | 00:49:59 | 0.72 | 1.71 | 0.5192 | 2.9271 | 0.0010 |
| 130 | 1300 | 00:51:56 | 0.70 | 1.81 | 0.4967 | 3.2754 | 0.0010 |
| 135 | 1350 | 00:53:53 | 0.72 | 1.88 | 0.5133 | 3.5208 | 0.0010 |
| 140 | 1400 | 00:55:49 | 0.71 | 1.84 | 0.5047 | 3.3997 | 0.0010 |
| 145 | 1450 | 00:57:46 | 0.69 | 1.81 | 0.4773 | 3.2823 | 0.0010 |
| 150 | 1500 | 00:59:42 | 0.69 | 1.79 | 0.4759 | 3.1913 | 0.0010 |
| 155 | 1550 | 01:01:39 | 0.66 | 1.78 | 0.4292 | 3.1606 | 0.0010 |
| 160 | 1600 | 01:03:36 | 0.63 | 1.74 | 0.4024 | 3.0253 | 0.0010 |
| 165 | 1650 | 01:05:33 | 0.67 | 1.77 | 0.4504 | 3.1407 | 0.0010 |
| 170 | 1700 | 01:07:29 | 0.66 | 1.87 | 0.4394 | 3.5100 | 0.0010 |
| 175 | 1750 | 01:09:26 | 0.59 | 1.72 | 0.3476 | 2.9637 | 0.0010 |
| 180 | 1800 | 01:11:23 | 0.65 | 1.80 | 0.4166 | 3.2458 | 0.0010 |
| 185 | 1850 | 01:13:19 | 0.54 | 1.91 | 0.2931 | 3.6658 | 0.0010 |
| 190 | 1900 | 01:15:16 | 0.81 | 1.80 | 0.6628 | 3.2433 | 0.0010 |
| 195 | 1950 | 01:17:12 | 0.78 | 1.66 | 0.6019 | 2.7468 | 0.0010 |
| 200 | 2000 | 01:19:09 | 0.66 | 1.70 | 0.4379 | 2.8963 | 0.0010 |
| 205 | 2050 | 01:21:06 | 0.58 | 1.69 | 0.3384 | 2.8453 | 0.0010 |
| 210 | 2100 | 01:23:03 | 0.57 | 1.72 | 0.3237 | 2.9709 | 0.0010 |
| 215 | 2150 | 01:24:59 | 0.54 | 1.81 | 0.2898 | 3.2773 | 0.0010 |
| 220 | 2200 | 01:26:56 | 0.52 | 1.78 | 0.2684 | 3.1785 | 0.0010 |
| 225 | 2250 | 01:28:53 | 0.59 | 1.71 | 0.3457 | 2.9146 | 0.0010 |
| 230 | 2300 | 01:30:50 | 0.50 | 1.86 | 0.2476 | 3.4739 | 0.0010 |
| 235 | 2350 | 01:32:48 | 0.48 | 1.86 | 0.2311 | 3.4490 | 0.0010 |
| 240 | 2400 | 01:34:44 | 0.48 | 1.71 | 0.2317 | 2.9211 | 0.0010 |
| 245 | 2450 | 01:36:41 | 0.50 | 1.87 | 0.2543 | 3.5030 | 0.0010 |
| 250 | 2500 | 01:38:38 | 0.55 | 2.04 | 0.3066 | 4.1628 | 0.0010 |
| 255 | 2550 | 01:40:35 | 0.46 | 1.87 | 0.2144 | 3.4843 | 0.0010 |
| 260 | 2600 | 01:42:32 | 0.59 | 1.88 | 0.3496 | 3.5158 | 0.0010 |
| 265 | 2650 | 01:44:29 | 0.52 | 1.78 | 0.2728 | 3.1686 | 0.0010 |
| 270 | 2700 | 01:46:26 | 0.45 | 1.72 | 0.2048 | 2.9435 | 0.0010 |
| 275 | 2750 | 01:48:23 | 0.40 | 1.79 | 0.1591 | 3.2040 | 0.0010 |
| 280 | 2800 | 01:50:19 | 0.45 | 1.75 | 0.1985 | 3.0679 | 0.0010 |
| 285 | 2850 | 01:52:16 | 0.35 | 1.89 | 0.1256 | 3.5809 | 0.0010 |
| 290 | 2900 | 01:54:13 | 0.34 | 1.76 | 0.1189 | 3.0899 | 0.0010 |
| 295 | 2950 | 01:56:10 | 0.39 | 1.80 | 0.1485 | 3.2481 | 0.0010 |
| 300 | 3000 | 01:58:07 | 0.39 | 1.93 | 0.1506 | 3.7139 | 0.0010 |
|======================================================================================================================|
Detector training complete.
*************************************************************************

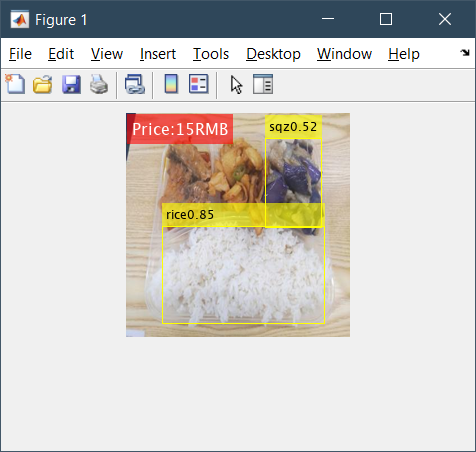

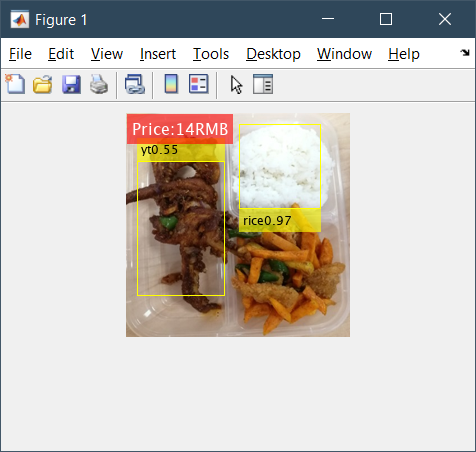

Some recognition results:
